    Bench Drilling Machine Servo Motor M3-M16 Touch Screen Electric Tapping Machine

    Ask Lasest Price
    Brand Name : WADJAY
    Model Number : M3-M16
    Certification : CE,ISO 9001
    Payment Terms : D/A, D/P, T/T, Western Union
    Supply Ability : 1000sets / month
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

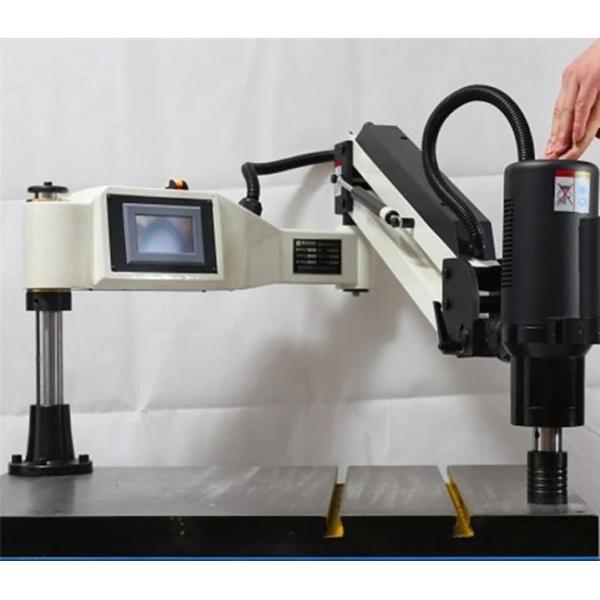

    Bench Drilling Machine Servo Motor M3-M16 Touch Screen Electric Tapping Machine

    Servo Motor M3-M16 Touch Screen Electric Tapping Machine

    Product Description

    1, the machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine or manual tapping limitations.

    2, advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non deformation, beautiful appearance.

    3. The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy workpiece, locate quickly, and process accurately.

    4, stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.

    5, automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth controller.

    6, repeated positioning fast, tapping speed, high production efficiency.


    <MACHINE PARAMETERS>


    M3-M16 Vertical electric tapping machineM3-M16 universal electric tapping machine
    BrandWADJAYBrandWADJAY
    ModelM3-M16ModelM3-M16
    Voltage220v,AC,50/60HZVoltage220v,AC,50/60HZ
    Power600wPower600w
    Tapping rangeM3-M16Tapping rangeM3-M16
    Tapping Collet(8pcs)3/4/5/6-8/10/12/14/16Tapping Collet(8pcs)3/4/5/6-8/10/12/14/16
    Tapping DirectionVertical or horizontalTapping DirectionUniversal
    Working radius1100mm/1300mm/1900mmWorking radius1100mm/1300mm/1900mm
    Max Speed312rpmMax Speed312rpm
    CustomizeYesCustomizeYes
    Weight32kgWeight32kg

    M6-M36 Vertical electric tapping machineM6-M36 universal electric tapping machine
    BrandWADJAYBrandWADJAY
    ModelM6-M36ModelM6-M36
    Voltage220v,AC,50/60HZVoltage220v,AC,50/60HZ
    Power1200wPower1200w
    Tapping rangeM6-M36Tapping rangeM6-M36
    Tapping Collet(11pcs)6-36Tapping Collet(11pcs)6-36
    Tapping DirectionVertical or horizontalTapping DirectionUniversal
    Working radius1100mm/1300mm/1900mmWorking radius1100mm/1300mm/1900mm
    Max Speed150rpmMax Speed150rpm
    CustomizeYesCustomizeYes
    Weight72kgWeight72kg

    < STANDARD ACCESSORIES >
