    CK6130 / CK6136 CNC Turning Turret Lathe Machine Bar Feeder Full Form Of Function

    Ask Lasest Price
    Model Number : CK6130
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 15-30 days after received payment
    • Product Details
    • Company Profile

    CK6130 / CK6136 CNC Turning Turret Lathe Machine Bar Feeder Full Form Of Function


    CK6130 / CK6136 Cnc Turning Turret Lathe Machine Bar Feeder Full Form Of Function

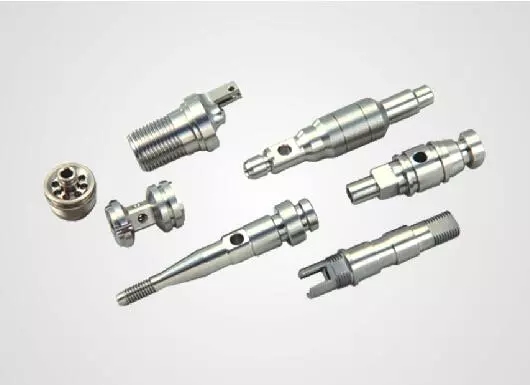

    This machine is widely used in processing and manufacture the electric appliance ,instrumentation industry ,automobile ,motorcycle ,fastener bearings ,photographic and film machinery ,hardware tools ,watches ,glasses ,stationery ,motors ,valves and gas pipe and other high precise and complex components .It is the ideal high efficient equipment in the hardware machining industry .
    CK6130 / CK6136 CNC Turning Turret Lathe Machine Bar Feeder Full Form Of Function

    ModelUnitCK6130CK6132
    swing over bedmm300320
    swing over cross slidemm10090/110/290/400
    max processing lengthmm260/320300/380
    X/Z axis travelmm300/350A2-5
    spindle noseA2-5A2-5
    spindle boremm4848
    bar capacitymm4141
    max spindle speedrpm25002500
    chuck sizemm160160
    spindle motorkw44
    X/Z axis repeatabilitymm0.0050.005
    X/Z axis feed motor torqueN.m4/44/4
    X/Z rapid traversemm/min8/108/10
    tailstock quill dia.mm5260
    quill traversemm90100
    quill taperMT4MT4
    tool post type4 station4 station
    cutting tool shape sizemm16x1616x16
    total power capacityKVA77
    machine dimensionMM1600x1100x16501750X1150X1650
    net weightkg9501200


    1. The machine can process precisely internal or external diameter, face, taper, arc and threading with high efficiency
    2. Standard toolpost is 4 stations
    3. Spindle speed changed by frequency
    4. Induction harden bed way, bed saddle with plastic sticker can improve the accuracy and service life of the machine
    5. The spindle is supported by imported precision bearing.
    6. Normally machine is provide with 3 jaw chuck. According to customer’s optional selection, hydraulic chuck or pneumatic chuck also can be supplied
    CK6130 / CK6136 CNC Turning Turret Lathe Machine Bar Feeder Full Form Of Function




    Q1.How to send my enquiry?
    You can contact us by email, phone call, message (Whats APP, We Chat, Skype).

    Q2.How long can I get feedback after enquiry?
    We will reply you within 3 hours in working day.

    Q3.Delivery time
    Machines order takes 30 days after deposit payment received. Please inquiry sales.

    Q4.What is the package? Is it suitable for shipment?
    Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

    Q5.Payment term
    30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.

    Q6.Can I trust you?
    Sure, we're Made in China Gold Suppliers,

    Q7.How long is the warranty for machines?
    Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.

    Q8.Can you engineer come to our place to help with machine installation & commission?
    Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your
