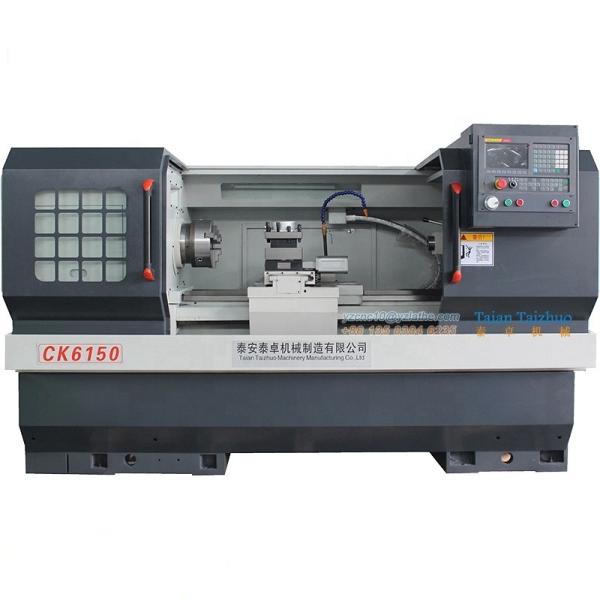

    CK6150 Metal Lathe Machine High Accuracy Toolroom Metal Cutting Guideway


    CK6150 Metal Lathe Machine High Accuracy Toolroom Metal Cutting Guideway

    Machine Description

    CK6150 Lathe High accuracy toolroom metal cutting guideway CNC Lathe Machine


    Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.

    Main Features

    1. Frequency conversion stepless speed regulation.
    2. Higher working efficiency.
    3. Higher rigidity cast iron.
    4. Fully enclosed-safety.


    CK6150A-CNC-Machine-And-Metal-CNC-Lathe (3)


    Product Parameters

    CNC Lathe Machine CK6150A

    Model
    CK6150A
    CK6150B
    CK6150T
    Max. rotation diameter over bed
    mm
    Φ500
    Φ500
    Φ500
    Max. rotation diameter over pallet
    mm
    Φ300
    Φ300
    Φ290
    Max. workpiece length
    mm
    750/1000
    750/1000
    750/1000
    Lathe bed width
    mm
    400
    400
    360
    Main transmission form
    Independent spindle
    Three gears
    Independent spindle
    Speed mode
    Frequency stepless
    speed
    Frequency stepless
    speed
    Frequency stepless
    speed
    Spindle speed range
    r/min
    150-2000
    36-1600
    150-2000
    Spindle head form
    8-D
    8-D
    8-A2
    Spindle bore
    mm
    Φ82
    Φ82
    Φ70
    Spindle centering axial taper
    1:4
    1:4
    1:4
    Spindle taper
    1:20
    1:20
    1:20
    Chuck diameter
    mm
    Φ250
    Φ250
    Φ250
    Main motor power
    kw
    7.5
    7.5
    7.5
    Turret maximum stroke
    mm
    X: 320
    Z: 760/1020
    X: 320
    Z: 760/1020
    X: 320
    Z: 760/1020
    Fast-moving feed
    mm/min
    X: 6000 Z: 8000
    X: 6000 Z: 8000
    X: 6000 Z: 8000
    Positioning accuracy
    mm
    X: 0.01 Z: 0.015
    X: 0.01 Z: 0.015
    X: 0.01 Z: 0.015
    Dia. of tailstock quill
    mm
    Φ75
    Φ75
    Φ70
    Tailstock quill stroke
    mm
    180
    180
    120
    Taper of tailstock quill
    MT5
    MT5
    MT5
    Repeat positioning accuracy
    mm
    0.008
    0.008
    0.008
    Section of turning tool
    mm
    25x25
    25x25
    25x25
    Size (LxWxH)
    mm
    2650x1600x1700
    3200x1600x1700
    2650x1600x1700
    3200x1600x1700
    2300x1500x1600
    2600x1500x1600
    Net weight
    kg
    3200/3500
    3200/3500
    2900/3200

    CK6150 Lathe

    CK6150A-CNC-Machine-And-Metal-CNC-Lathe


    The machine voltage is optional

    Three phase: 380V/220V/415V/480V Single phase: 220V
    Important note: Please confirm your local voltage with our sales staff before ordering.
