    CNC Hydraulic Pipe Bending Machine For Metal Furniture Chair Making Machine

    Ask Lasest Price
    Brand Name : wadley
    Model Number : 75CNC
    Certification : ISO 9001
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets / month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

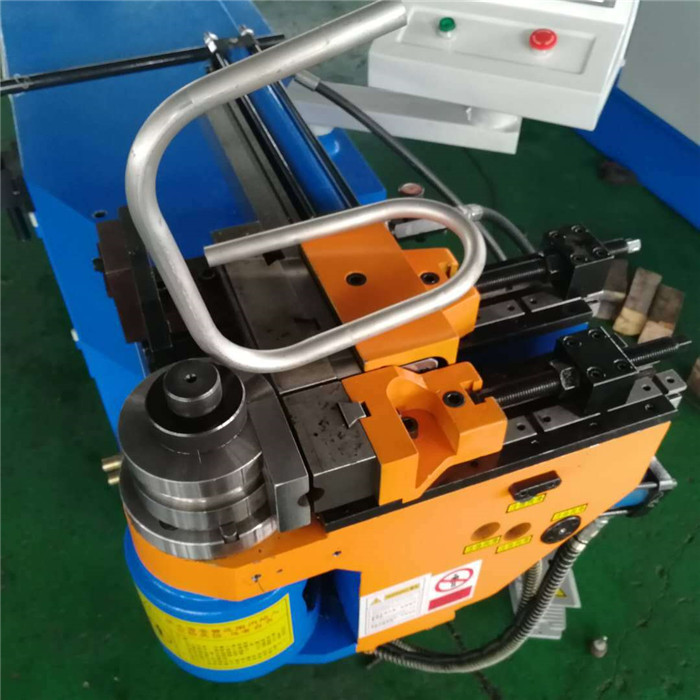

    CNC Hydraulic Pipe Bending Machine For Metal Furniture Chair Making Machine


    CNC Hydraulic Pipe Bending Machine For Metal Furniture Chair Making Machine


    CNC Hydraulic Pipe Bending Machine For Metal Furniture Chair Making Machine


    Introduction:

    A. Bending-Auto driven by hydraulic, Rotaion-Auto by servomotor, Feeding-Auto by servomotor


    B. Pneumatic movement of machine------clamp, pressure clamp, clutch, mandrel (High speed)


    C. Automatic lubrication system of machine head and mandrel,bend processing


    D. XYZ transferred to YBC which is convenient for user,auto bending machine


    E. Different tooling design customized for user,auto bender


    F. Anticipated Mandrel Extraction good for tube of very small thickness


    G. Reclamp function suitable for tube length without limitation


    H. Optional function ------punching hole, cutting, multiple radius, roll bending, etc


    I. Standard tooling including clamp die, wiper die, mandrel, pressure die, bend die


    J. Seperate oil tank with oil filter--easy for cleanning


    K. Option control system----Industrial computer with function of 3D simulation, 3D view, inch input, drawing input, remote control


    Overview:


    NC single-head hydraulic pipe bender microcomputer control, hydraulic drive, Chinese subtitles, interactive operation, to achieve the cold state of pipes, profiles of bending. Text display can be set to a variety of angles, Mobile pedal switch with start, stop, stop three functions continue to make flexible, convenient, and reliable is an economical, practical pipe, profile processing equipment.




    CNC Hydraulic Pipe Bending Machine For Metal Furniture Chair Making Machine


    Specification/ModelDW75CNC
    Max bending diameter of pipe75mm
    Max bending wall thickness of pipe3mm
    Max bending radius300mm
    Min bending radius100mm
    Max bending angle190°
    Max feeding length2800mm
    feeding methoddirect feeding / clamping feeding
    Bending speedMax 85°/s
    Rotary speedMax 200°/s
    Feeding speedMax 1000mm/s
    Bending accuracy±0.1°
    Rotary accuracy±0.1°
    Feeding accuracy±0.1mm


    CNC Hydraulic Pipe Bending Machine For Metal Furniture Chair Making Machine



    CNC Hydraulic Pipe Bending Machine For Metal Furniture Chair Making Machine

    Q1.How to send my enquiry?
    You can contact us by email, phone call, message (Whats APP, We Chat, Skype).

    Q2.How long can I get feedback after enquiry?
    We will reply you within 3 hours in working day.

    Q3.Delivery time
    Machines order takes 30 days after deposit payment received. Please inquiry sales.

    Q4.What is the package? Is it suitable for shipment?
    Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.

    Q5.Payment term
    30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.

    Q6.Can I trust you?
    Sure, we're Made in China Gold Suppliers,

    Q7.How long is the warranty for machines?
    Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.

    Q8.Can you engineer come to our place to help with machine installation & commission?
    Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
