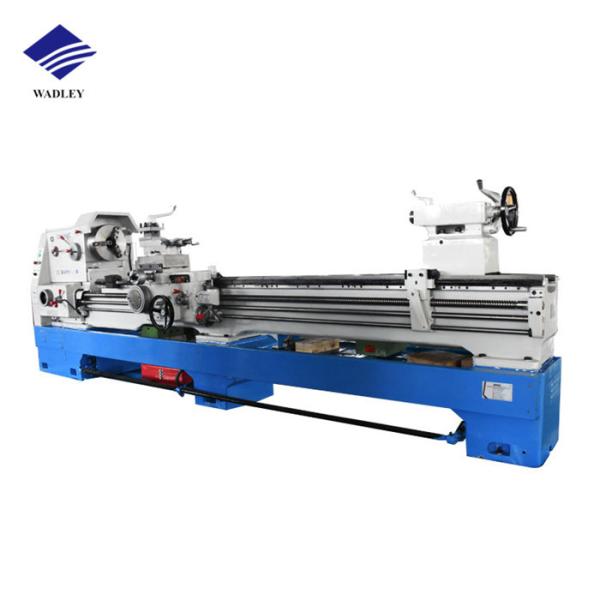

    Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

    Ask Lasest Price
    Brand Name : wadley
    Model Number : CW61125
    Certification : CE,ISO
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100 sets/monthe
    Delivery Time : 20-25 days after received payment
    • Product Details
    • Company Profile

    Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm


    Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm


    Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

    These lathe can perform to turn end faces, cylindrical surfaces and internal holes of various parts as well as metric, inch, module and pitch threads. The top slides can be operated individually by power for cutting short taper surface, also, can be turned automatically through the compound movement combining longitudinal feed with the top slide feed. Moreover, the machines may be used for drilling, boring and trepanning.

    They have characteristics of high power, high spindle speed, high rigidity. The various ferrous and non-ferrous metals parts maybe turned through the heavy outing by carton alloy tools.

    • High spindle torque.

    • Swing over bed from 1600mm

    • Head stock with hydraulic cluth.

    • Hardened and ground guideway.

    • Main motor power:22kw.

    • Spindle box and feeding box adopt oil pump shower type lubrication.

    • Lathe noise step is less than 85A.

    • Lathe tailstock sleeve adopts metric 80.

    • Safety, stable, hardness, high speed, rigidity and long life service.

    Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

    MODELCWA61100CWA61125CWA61140CWA61160
    Max.weight of workpiece8T
    Max.swing over bed1000mm1250mm1400mm1600mm
    Max.swing over cross slide620mm870mm1000mm1200mm
    Center distance1.5m 2m 3m 4m 5m 6m 8m 10m 12m
    Width of bed780mm
    HEAD STOCK
    Spindle hole130mm
    Spindle tapermetric 140#
    Spindle speeds3.15-315r/min or 2.5-250r/mm.types of rev:forward 21,backward 12
    GEAR BOX-THREADS&FEEDS
    Metric threads range(kinds)44 types 1-120mm
    Inch threads range(kinds)31types 1/4-24 tooth/hour
    Moudle threads range(kinds)45types 0.5-60mm
    Diametral threads range(kinds)38types 1/2-56DP
    Longitudinal feeds range(kinds)56types0.1-12mm
    Cross feed range(kinds)56types 0.05-6mm
    Rapid feed:Long/Cross3400mm/min,1700mm/min
    TOOL-POST
    Distance between Center & Tool48mm
    Tool section45*45mm
    CARRIAGE
    Cross slide travel650mm
    Compound rest travel280mm
    TAILSTOCK
    Sleeve diameter160mm
    Sleeve tapermetrics 80#orM6#
    Sleeve travel300mm
    MOTOR
    Main motor22kw
    Coolant motor0.15kw
    Rapid feed motor1.5kw

    Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

    Heavy Duty Manual Lathe Machine CW Ceries With Swing Over Bed Diameter 1250mm

    Q1. What machines can be available in your factory?
    A. We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. For example:
    CW61160,CW61200,CW6163,CW6263,CW6180Q,CW6280Q,CAK50 SERIE ,CAK80 SERIES,and so on.

    Q2. What is your minimum order quantity and warranty?
    A. MOQ is one set, and warranty is one year.

    Q3. How' s your after-sale service?
    A. Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.

    Q4. What is the package? Is it suitable for shipment?
    A. Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.

    Q5. Are you manufacturer?
    A. Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us!
