    Building Material Rolling Shutter Door Roll Forming Machine automatic roller shutter garage doors machine

    Ask Lasest Price
    Model Number : Rolling Shutter Door Roll Forming Machine
    Certification : CE,ISO 9001
    Payment Terms : Western Union, D/P, D/A, L/C, T/T, MoneyGram
    Supply Ability : 100 sets / month
    Delivery Time : 10-15 days after received payment
    Brand Name : WADJAY
    • Product Details
    • Company Profile

    Building Material Rolling Shutter Door Roll Forming Machine automatic roller shutter garage doors machine

    Building Material Rolling Shutter Door Roll Forming Machine automatic roller shutter garage doors machine

    Product Description

    Product name:Rolling Shutter Door Roll Forming Machine
    Type:Shutter Door Tile
    Tile Type:Steel
    Use:Door
    After-sales Service Provided:Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
    Key Selling Points:Easy to Operate
    Control system:PLC(imported Brand)
    Name:Metal Door Frame
    Roll material:45# high grade steel
    Keyword:Light Gauge Joist Forming Machine
    Color:Client's Request
    Cutting type:Hydraulic cutting


    1. Introduction of Roller Shutter Door Roll Forming Machine
    The line consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system. The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.


    2. Technical Parameters of Roller Shutter Door Roll Forming Machine

    No.ItemSpecification
    1Can Formed MaterialGI,AI
    2Equipment operationAutomatic
    3Voltage380V 60Hz 3Phase or as your requirement
    4Thickness of sheet (mm)0.8-1.2mm
    5Material width(mm)As your requirement
    6Cover Width of the sheet after formedas your drawing
    7The size of the roll forming machine5000mmx800mmx1400mm
    8Speed8-15m/min
    9Diameter of shaft40mm
    10Weight of the Machine3000-3500KGS
    11Material of rollersC45 steel quenched and chromed
    12Motor brandSiemens or Guomao
    13PLCSiemens or Delta or Mitsubushi
    14Total power (kw)8kw
    15Power of hydraulic system4kw
    16Power of main molding core4kw

    3. Components of of Roller Shutter Door Roll Forming Machine

    NoNameQty
    1Decoiler1
    2Automatic control system1
    3Hydraulic system1
    4Automatic cutting1
    5Products receiving tables1

    4. Process of of Roller Shutter Door Roll Forming Machine

    Decoiler-active feeding-coil strip leveing –roll forming -measure length-cut to length-product packing

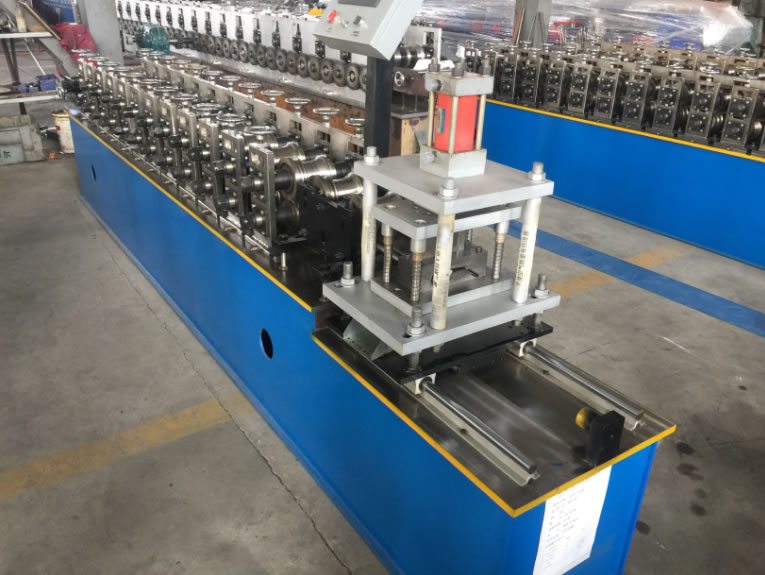

    5. Pictures of of Roller Shutter Door Roll Forming Machine

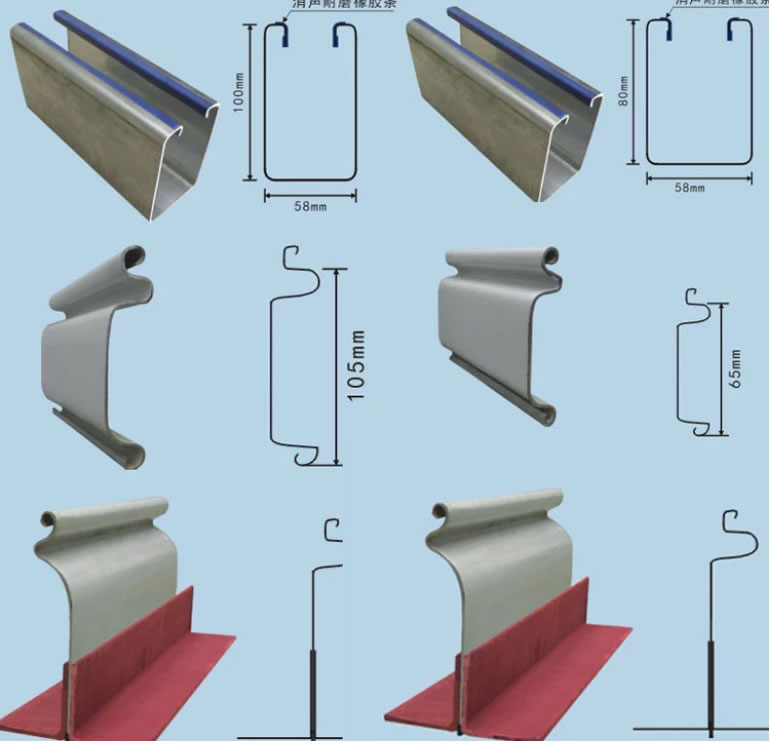

    Product Application

    6. Application of Automatic Light Steel Keel Stud&Track Roll Forming Machine

    5. Pictures of of Roller Shutter Door Roll Forming Machine
