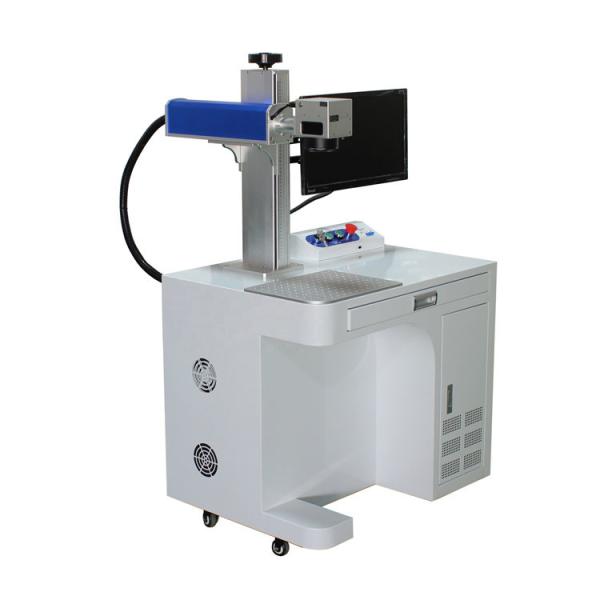

    50W Fiber Laser Marking Machine 0.5mm Depth For Metal Glass Plastic

    Ask Lasest Price
    Brand Name : wadley
    Model Number : WDL-205B
    Certification : ISO 9001
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets / month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    50W Fiber Laser Marking Machine 0.5mm Depth For Metal Glass Plastic


    Laser 50W Portable Fiber Laser Marking Machine Price For Metal Glass Plastic


    50W Fiber Laser Marking Machine 0.5mm Depth For Metal Glass Plastic


    Product Introduction:

    (Marking Area:110*110mm,175*175mm,200*200mm)


    1.We are Professional manufacturer of fiber laser marking / printing /engravingmachine since 2000, and have15 years experience for over-sea market.


    2. Adopt professional Max / China Raycus / Germany IPG laser source


    3. Application industry: all metal objects and some plastic objects.


    4. this fiber laser marking machine professional software and full english user guider.


    5. Delivery time: 2-3 working days.


    6. warranty period: 1 years

    Application:


    20W 30W 50W Raycus / IPG / Max fiber laser marking marker machine for engraving / marking all of metals and some plastic.


    20W 30W 50W Raycus / IPG / Max fiber laser marking marker machine



    50W Fiber Laser Marking Machine 0.5mm Depth For Metal Glass Plastic


    Model No.WDL-400A
    TypePortable
    ComputerNot includes PC
    IPG Series:Pulsed, High Energy Ytterbium Fiber Lasers
    Nominal average output power10W - 30W For PEDB-400A /400B /400C; 10W - 50W For PEDB-400D
    Central emission wavelength:1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
    Emission Bandwidth (FWHM)<10 nm
    Pulse width, (FWHM)100 ns
    Pulse Repetition Rate* kHz20-80 kHz
    Energy per pulse (PRR = 20 kHz)0.95 mJ
    Typical beam quality, M2<1.8
    Output fiber delivery length3m
    Operating voltage:220V
    Scanning Speed:0-7000mm/s
    Marking Speed:0-5000mm/s
    Marking size:110mm×110mm (F-theta 160)
    Spot size:≤ 40 micron (F-theta 160)
    Cooling unit:Air cooled
    Pilot laser:650nm diode laser, visible red light for marking guide
    Continuous working time:≥16h
    Net Dimensions:70*20*50cm
    Net Weight:44 kgs
    Gross Weight:60 kgs


    50W Fiber Laser Marking Machine 0.5mm Depth For Metal Glass Plastic




    50W Fiber Laser Marking Machine 0.5mm Depth For Metal Glass Plastic

    Q1.How to send my enquiry?
    You can contact us by email, phone call, message (Whats APP, We Chat, Skype).


    Q2.How long can I get feedback after enquiry?
    We will reply you within 3 hours in working day.


    Q3.Delivery time
    Machines order takes 30 days after deposit payment received. Please inquiry sales.


    Q4.What is the package? Is it suitable for shipment?
    Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.


    Q5.Payment term
    30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.


    Q6.Can I trust you?
    Sure, we're Made in China Gold Suppliers,


    Q7.How long is the warranty for machines?
    Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.


    Q8.Can you engineer come to our place to help with machine installation & commission?
    Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
