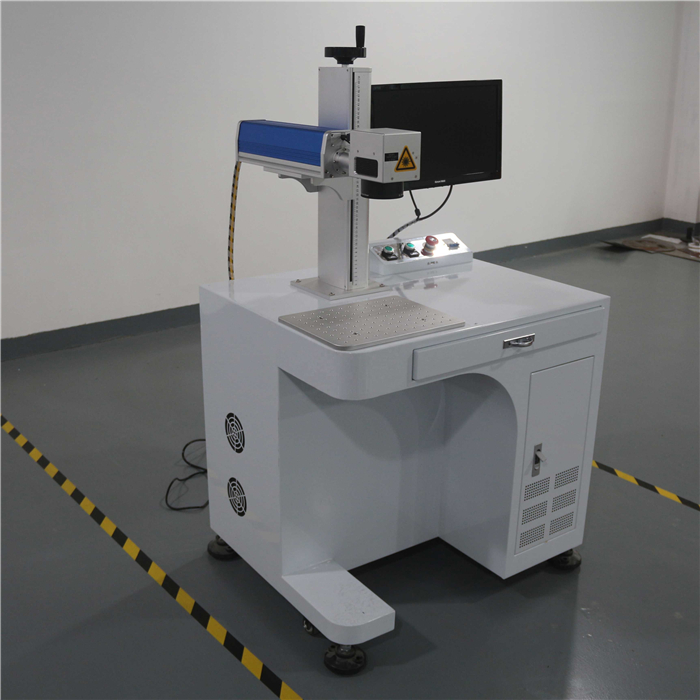

WDL-205B Laser Engraving Cutting Machine For Carbon Steel Metal Glass

    Buy cheap WDL-205B Laser Engraving Cutting Machine For Carbon Steel Metal Glass from wholesalers

    Buy cheap WDL-205B Laser Engraving Cutting Machine For Carbon Steel Metal Glass from wholesalers
    • Buy cheap WDL-205B Laser Engraving Cutting Machine For Carbon Steel Metal Glass from wholesalers
    • Buy cheap WDL-205B Laser Engraving Cutting Machine For Carbon Steel Metal Glass from wholesalers

    WDL-205B Laser Engraving Cutting Machine For Carbon Steel Metal Glass

    Ask Lasest Price
    Brand Name : wadley
    Model Number : WDL-205B
    Certification : ISO 9001
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 500 sets / month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    WDL-205B Laser Engraving Cutting Machine For Carbon Steel Metal Glass


    WDL-205B Laser Engraving Cutting Machine For Carbon Steel Metal Glass


    WDL-205B Laser Engraving Cutting Machine For Carbon Steel Metal Glass


    Features:


    1. High electro-optic conversion efficiency


    2. Low power consumption, stability laser output


    3. High quality beam, consumable free,small machine dimension


    4. Smaller output laser beam,finer marking line.suitable high precision marking


    Applications:


    It is widely used in electronic components,hardware industry,electronic components,


    daily consumer goods, sensors, auto parts,3C electronics,artwork,precisionapparatus,craft,


    medical machinery,high-low electric,bathindustry,batteryindustry,IT industry etc.




    WDL-205B Laser Engraving Cutting Machine For Carbon Steel Metal Glass


    Model No.WDL-400A
    TypePortable
    ComputerNot includes PC
    IPG Series:Pulsed, High Energy Ytterbium Fiber Lasers
    Nominal average output power10W - 30W For PEDB-400A /400B /400C; 10W - 50W For PEDB-400D
    Central emission wavelength:1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
    Emission Bandwidth (FWHM)<10 nm
    Pulse width, (FWHM)100 ns
    Pulse Repetition Rate* kHz20-80 kHz
    Energy per pulse (PRR = 20 kHz)0.95 mJ
    Typical beam quality, M2<1.8
    Output fiber delivery length3m
    Operating voltage:220V
    Scanning Speed:0-7000mm/s
    Marking Speed:0-5000mm/s
    Marking size:110mm×110mm (F-theta 160)
    Spot size:≤ 40 micron (F-theta 160)
    Cooling unit:Air cooled
    Pilot laser:650nm diode laser, visible red light for marking guide
    Continuous working time:≥16h
    Net Dimensions:70*20*50cm
    Net Weight:44 kgs
    Gross Weight:60 kgs


    WDL-205B Laser Engraving Cutting Machine For Carbon Steel Metal Glass




    WDL-205B Laser Engraving Cutting Machine For Carbon Steel Metal Glass

    Q1. How to send my enquiry?
    You can contact us by email, phone call, message (Whats APP, We Chat, Skype).


    Q2. How long can I get feedback after enquiry?
    We will reply you within 3 hours in working day.


    Q3. Delivery time
    Machines order takes 30 days after deposit payment received. Please inquiry sales.


    Q4. What is the package? Is it suitable for shipment?
    Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.


    Q5. Payment term
    30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to inquiry sales.


    Q6. Can I trust you?
    Sure, we're Made in China Gold Suppliers,


    Q7. How long is the warranty for machines?
    Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.


    Q8. Can you engineer come to our place to help with machine installation & commission?
    Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
